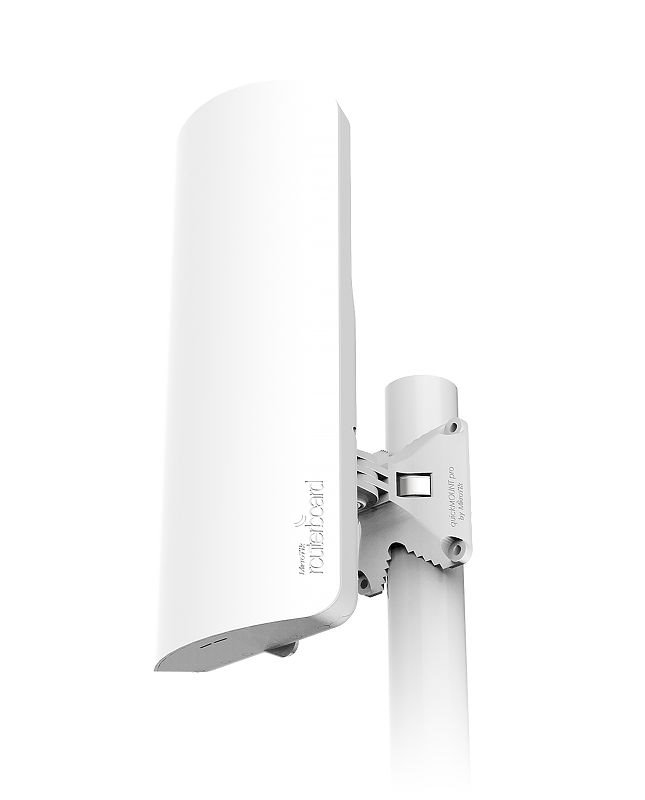

MikroTik mANTBox 52 15s, 15dBi, 1x 1Gb port, 1x SFP port

Jednotka mANTBox se dočkala upgradu, kde na Vás čeká rozšíření o obě používaná pásma jak 2.4 tak 5GHz vše samozřejmě v duálním módu. Jednotka disponuje 1x RJ45 gigabitovým portem a 1x SFP portem. Na portu RJ45 je samozřejmosti POE IN.

Hardware:
CPU 4 core IPQ-4019 716 MHz
Size of RAM 256 MB
Storage 16 MB flash
Number of 1GbE ports 1

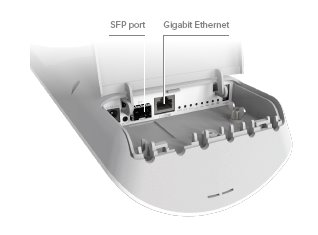

Number of 1G SFP ports 1
Wireless 2.4 GHz 802.11b/g/n dual-chain, 5 GHz 802.11a/n/ac dual-chain
Wireless regulations Specific frequency range can be limited by country regulations
PCB temparature monitor Yes
Voltage monitor Yes
USB port USB type A
Operating system RouterOS, License level 4
Antenna gain 12 dBi (2.4 GHz), 15 dBi (5 GHz)
Antenna beam width 90° (2.4 GHz), 60° (5 GHz)
Polarization Vertical and horizontal
Tested ambient temperature -40°C to +70°C
Max power consumption without attachments 15 W
Max power consumption 21 W
Dimensions 140 x 348 x 82 mm

Napájení:
PoE-in 802.3af/at
PoE-in input voltage 12-57 V
Number of DC inputs 2 (PoE-in, DC jack)
DC jack input voltage 12-57 V
Power adapter nominal voltage 48 V
Power adapter nominal current 0.95 A
